Front Neck Drop:
Back Neck Drop:
High Point Shoulder:
Center Back Length:
Across Back Sholder width:
(Armhole to Armhole straight)
Chest 1" below AH:
Sleeve Lenght w/cuff:
Sleeve Lenght No Cuff:
Block: 10x10" [25.4 cm x 25.4 cm]

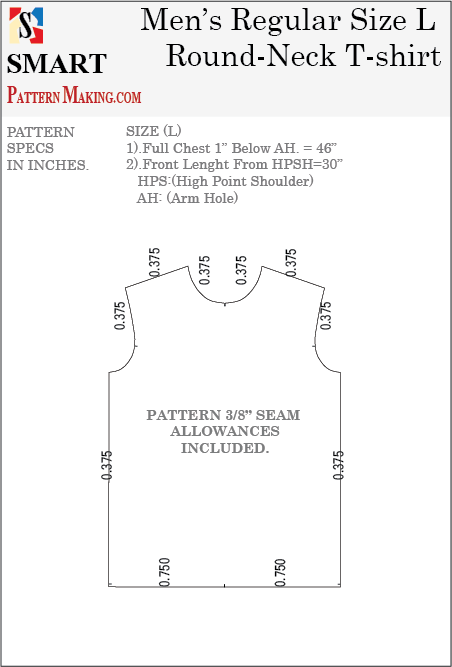

Neck line: 1/4" [0.635 0 cm]
Shoulder:1/2" [1.27 cm]
Side Seam: 1/2" [1.27 cm]
Sleeve Hem: 1" [2.540]
Bottom Hem: 1" [2.540]
1/16 = 0.158 8 cm
1/8" = 0.317 5 cm
1/4" = 0.635 0 cm
3/8" = 0.952 5 cm
1/2" = 1.270 0 cm
5/8" = 1.587 5 cm
3/4" = 1.905 0 cm
7/8" = 2.222 5 cm
1" = 2.540 0 cm

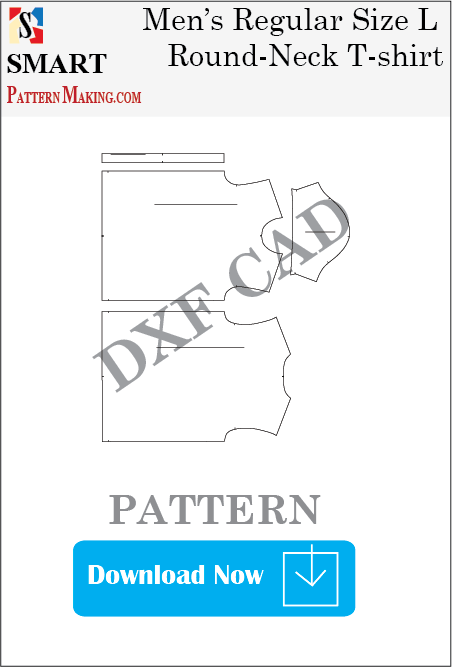

This DXF/CAD Sewing Pattern) has been designed specifically for manufacturing companies, Dye Sublimation/Screen Printing companies, sewing contractors, fashion designers, pattern makers and people that love fashion and wish to save hundreds of dollars in the development and creation of their sewing patterns.
This DXF sewing pattern has Imperial System (inches) measurements. Our (Men's Round Neck T-shirt Sewing Pattern) is a professional pattern making block (0x0) No shrinkage added block that has been cut and sewn multiple times to test for balance and fit on a professional fit model size L. This cutting, sewing and testing process can easily cost you more than a thousand dollars not including professional fit model rates of at least $200 dollars per hour for each fitting session.
This DXF/CAD (Men's Round Neck T-shirt Sewing Pattern) can be used for personal or business purposes and use it an unlimited number of times to cut and sew your samples or production.
Yes, you can size up or down this DXF/CAD (Men's Round Neck T-shirt Sewing Pattern) to your own particular measurements just follow pattern grading format below and replace size & grade with your own specs.
Type Grading Around Body:
Example: (XS-3") (S-2") [M] (L+2") (XL+4")
Type Length Grading:
Example: (XS-1") (S-1/2") [M] (L+1/2") (XL+1") Then you select one of our pattern grading services by selecting the total amount of pieces that make up your design and the number of sizes that you wish to grade up or down.
You can not reproduce, distribute or sell this patterns as your own creation or posted on blogs or websites for free downloads without written permission as this will be a Copyright infringement.
Our patterns save you hundreds of dollars when building a design. Our patterns can be imported into a Fashion CAD System. Our patterns have less seam allowances versus commercial patterns 5/8". Our patterns contain manufacturing seam allowances standard widths. Our patterns use apparel industry manufacturing language.
Any of these popular CAD Systems can import and open our DXF/AMMA files: [Geber System] [Tukatech System], [PAD Systems],[Optitex System], [Ivestronica System] ,[Lectra Systems] and any other CAD Systems that have the capability to import DXF/AMMA files. To make sure that your CAD system can open our DXF files please download our Free DXF Pattern here before you buy.
The product download link expires in (6) hours from the time of purchase
Your Download Limit is (4) times only.

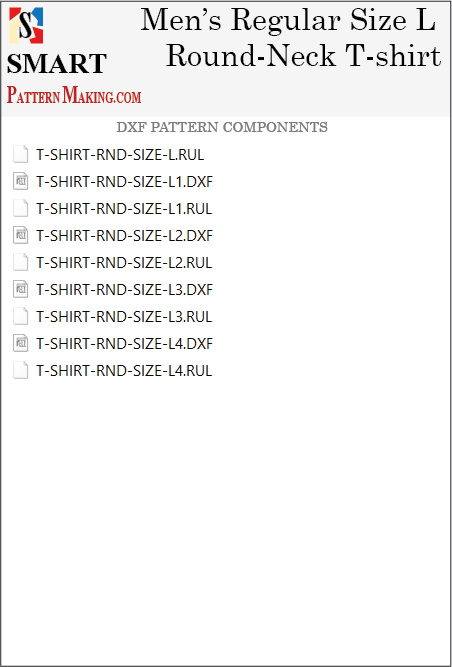

1). First, go to your Computer [Download Folder] and look for a file called: Free DXF Patterns
2). Double click [Free DXF Pattern Folder] to extract DXF and Rul. files.
3). Finally, Select DXF file(s)s to be imported to your CAD pattern design system.
